Histogram With Breaking Axis And Interlaced Colorbar

I have data as those ones a b c d e alpha 5.51 0.60 -0.12 26.90 76284.53 beta 3.39 0.94 -0.17 -0.20 -0.20 gamma 7.98 3

Solution 1:

Have you seen this example? It's for a broken y-axis plot in matplotlib.

Hope this helps.

Combining with pandas this gives:

import pandas as pd
import matplotlib.pyplot as plt
from StringIO import StringIO

data = """\
        a       b       c       d       e
alpha   5.51    0.60    -0.12   26.90   76284.53
beta    3.39    0.94    -0.17   -0.20   -0.20
gamma   7.98    3.34    -1.41   7.74    28394.93
delta   2.29    1.24    0.40    0.29    0.28
"""

df = pd.read_csv(StringIO(data), sep='\s+')

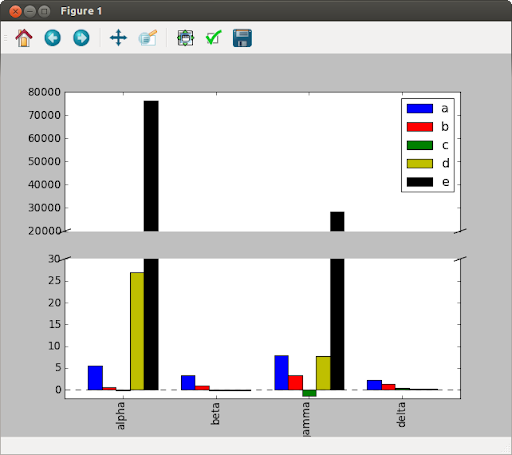

f, axis = plt.subplots(2, 1, sharex=True)
df.plot(kind='bar', ax=axis[0])
df.plot(kind='bar', ax=axis[1])
axis[0].set_ylim(20000, 80000)
axis[1].set_ylim(-2, 30)
axis[1].legend().set_visible(False)

axis[0].spines['bottom'].set_visible(False)
axis[1].spines['top'].set_visible(False)
axis[0].xaxis.tick_top()
axis[0].tick_params(labeltop='off')
axis[1].xaxis.tick_bottom()
d = .015
kwargs = dict(transform=axis[0].transAxes, color='k', clip_on=False)
axis[0].plot((-d,+d),(-d,+d), **kwargs)
axis[0].plot((1-d,1+d),(-d,+d), **kwargs)
kwargs.update(transform=axis[1].transAxes)
axis[1].plot((-d,+d),(1-d,1+d), **kwargs)
axis[1].plot((1-d,1+d),(1-d,1+d), **kwargs)
plt.show()
